How To Install Cross Roller Guides？

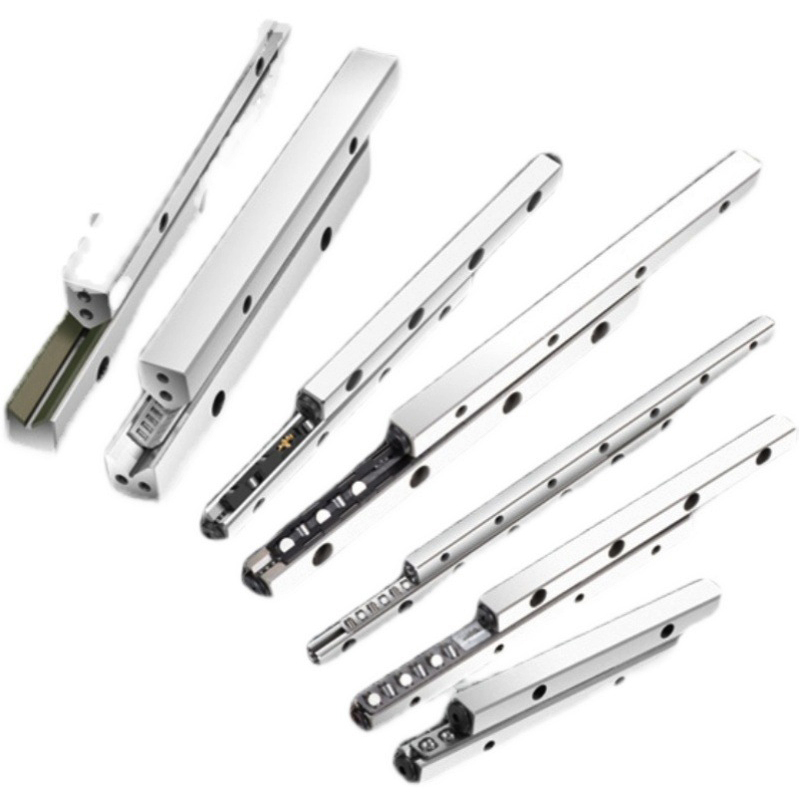

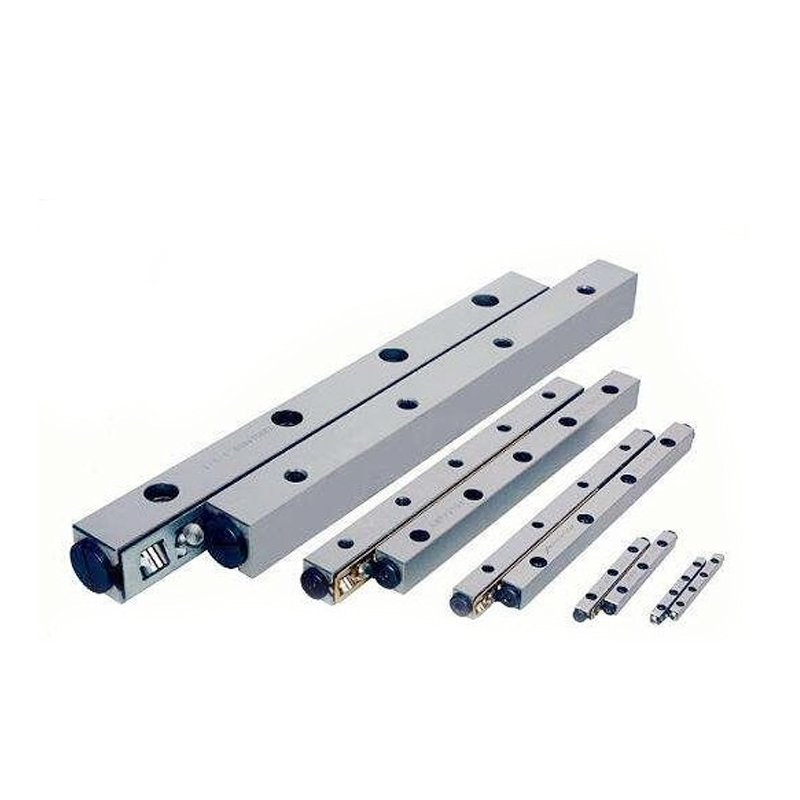

Crossed roller guideway (Crossed Roller Guide) is a kind of linear motion system used in industrial equipment, robots, precision instruments and other fields. Its structure is characterized by the cross arrangement of rollers, which can bear large loads in all directions, and has the characteristics of high precision and high rigidity. The guide rail is widely applied to occasions requiring high precision, high load and stability, such as semiconductor equipment, medical equipment,Optical instruments, etc.

The main features of the cross roller guide are:

1.High precision:

Due to the adoption of the crossed roller structure, the guide rail has high positioning precision and is suitable for applications with high precision requirements.

2.High load capacity:

Due to the cross arrangement of the rollers, the guide rail can withstand large radial and axial loads in multiple directions and has a strong load capacity.

3.High rigidity:

The cross arrangement of rollers makes the guide rail have high rigidity and can maintain stability during the movement.Vibration and deformation are not easy to occur.

4.Low friction:

rolling contact is adopted between the roller and the guide rail, so the friction is small, which can reduce the energy loss and wear, and improve the service life of the guide rail. 5.Simple structure:

the structure of the cross roller guide is relatively simple, easy to install, and low maintenance cost.

6.Strong adaptability:

the cross roller guide rail is suitable for various environments and working conditions, and can meet the requirements of different application occasions.

The installation method of the cross roller guide is generally as follows:

1.Preparation:

Prepare required tools and materials, including cross roller guides, bolts, nuts, gaskets, etc. Clean the installation position to ensure that the surface is flat, clean and free of debris. 2.Mounting base:

Determine the installation position of the cross roller guide rail according to the requirements of the equipment. Fix the base or mounting seat on the base or workbench of the equipment, and firmly fix it with bolts, nuts, etc.

3.Install the guide rail body:

Place the cross roller guide body on the mounted base.Use a level or other suitable tool to ensure that the rail body is level. Fixed guide rail: Between the rail body and the base, install the bolts and nuts to ensure that the rail body is firmly fixed to the base. Pay attention to adjusting the tightness of the bolt, so that the guide rail can slide freely, but there will be no excessive shaking.

4.Check and adjust:

After installation, conduct a thorough inspection to ensure that the guide rail is installed correctly and firmly. If necessary,Make the final fine-tuning to ensure that the guide rail runs smoothly without stuttering.

5.Lubrication:

Lubricate the cross roller guide according to the equipment requirements to ensure its smooth operation.

6.Test:

After installation, a series of tests, including sliding test and load test, are carried out to ensure that the guide rail is installed correctly and meets the requirements of the equipment.

7.Scheduled maintenance:

Regularly inspect and maintain the cross roller guide over time to ensure its long-term stable operation.
