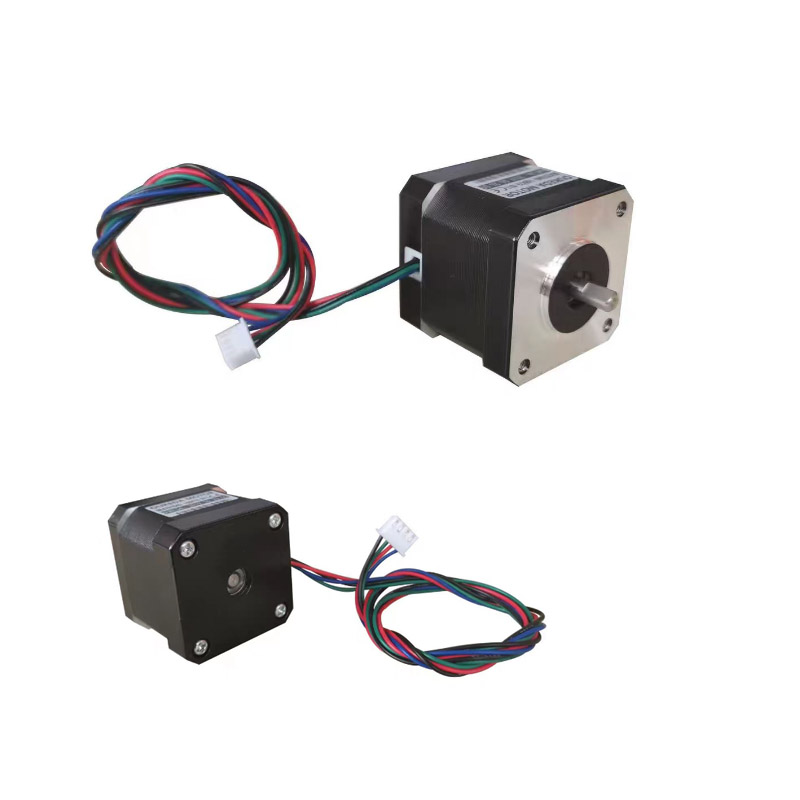

2-Phase NEMA17 2.0Amp 0.59nm Linear Stepper Motor for CNC Carving Machine

Share to:

2-Phase NEMA17 2.0Amp 0.59nm Linear Stepper Motor for CNC Carving Machine

Model:
NEMA17（ 42mm*L48mm）

Availability:

Quantity:



Inquire Add to Basket

Product Description

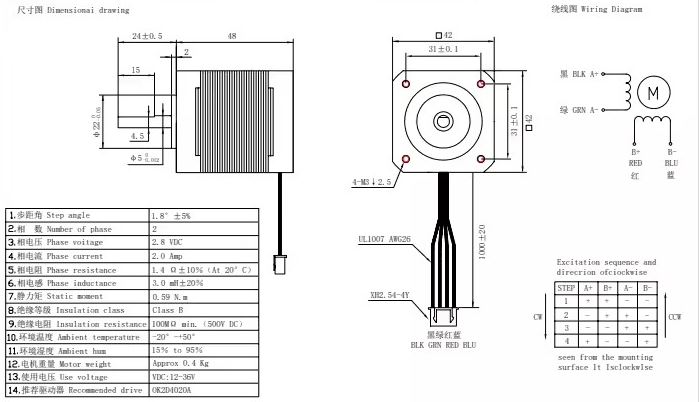

Parameters of Linear Stepper Motor

Description of Linear Stepper Motor

Model : Nema17

Step Angle :1.8

Phase:2

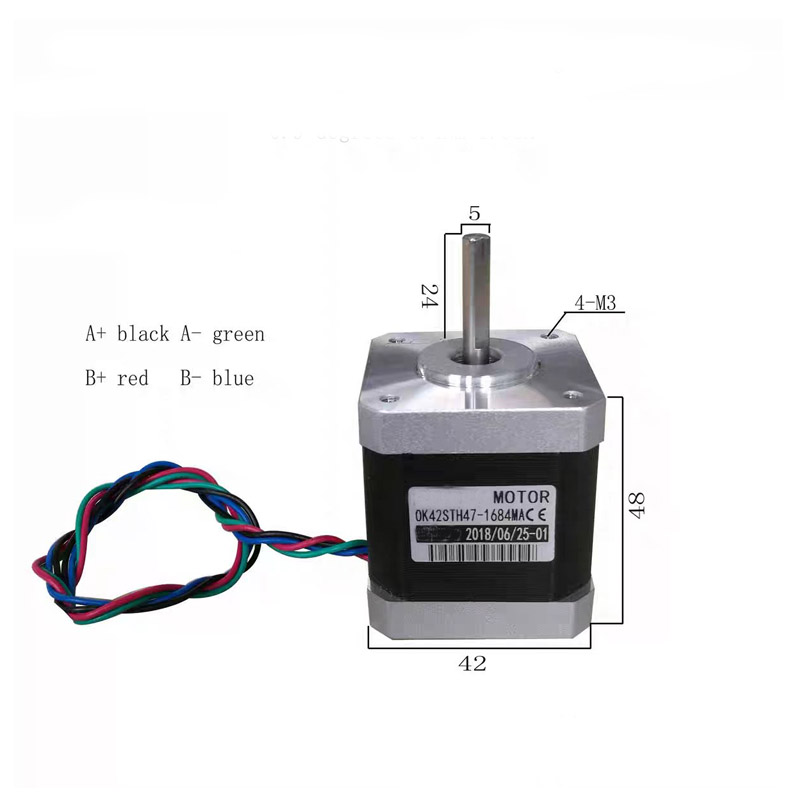

Motor Frame Size : 42mm * 42mm * 48mm (Length*Width *Height )
Shaft : 24mm(Lenght) 4.5mm(Diameter)

Outlet way : 4Pin plug line

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature -----------20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute

Feature of Linear Stepper Motor

Battery-Free, Mechanical Absolute Encoder
Closed Loop Performance, No Hunting or Gain Tuning
AC Input
Wide Range of Gear Types for Inertia Matching & Higher Torque
Electromagnetic Brake Type Available

Feature	Stepper Motors	Servo Motors
Torque	High speed low torque	High-speed motor torque
Types of magnet	Stepper motors use conventional magnets	Servo motors use rare earth magnets like Neodymium and Alnico
Size and weight	Small and lightweight	Large and heavy
Speed	low to medium speed	low to high speed
Operating system	open-loop system	closed-loop system
Power consumption	Less power consumption	High power consumption
Pole count	High pole count (50-100)	Low pole count (4-12)
Position control	Low	More
Response	Fast	Slow
