DRV8825
| Quantity: | |
|---|---|

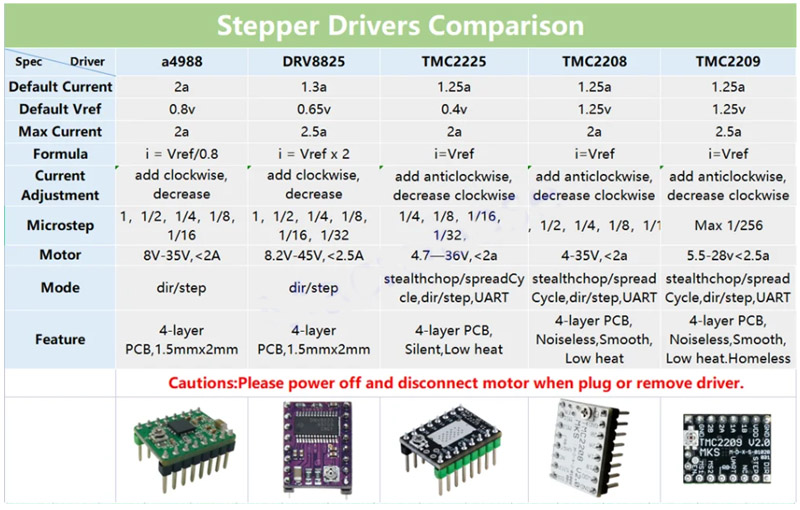

Parameters of Stepper Motor Driver Module
Description of Stepper Motor Driver Module
DRV8825 with Micro-stepping capability. The module has a pinout that is identical to A4988 driver, yet it affoards better performance. Both drivers are compatible with the RAMPS shield for 3D printers and CNC.
The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six microstep resolutions (down to 1/32-step). It can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (it is rated for 2.5 A per coil with sufficient additional cooling).
The driver requires a logic supply voltage (3 - 5.5 V) to be connected across the VDD and GND pins and a motor supply voltage (8 - 45 V) to be connected across VMOT and GND. The logic voltage can be supplied from an external source, such as that powering the logic of the rest of the system
Features of Stepper Motor Driver Module
The DRV8825 features of Stepper Motor Driver Module
1, suitable for driving 8.2V~45V 2.5A stepper motor below;
2, only simple step and direction control interface;
3, six different stepping modes: full, half, 1/4, 1/8, 1/16, 1/32;
4, adjustable potentiometer can adjust the maximum current output, so as to obtain a higher step rate;
5, automatic current attenuation mode detection/selection;
6. Overheat closing circuit, undervoltage locking, cross current protection;
7, grounding short-circuit protection and loading short-circuit protection
Application of Stepper Motor Driver Module
Where a stepper motor needs to be driven.
It is an essential module for building 3d printers, cnc, engraving machines, etc.
Support 3 d printers have Prusa Mendel, ultimaker, printbot, makerbot, etc.

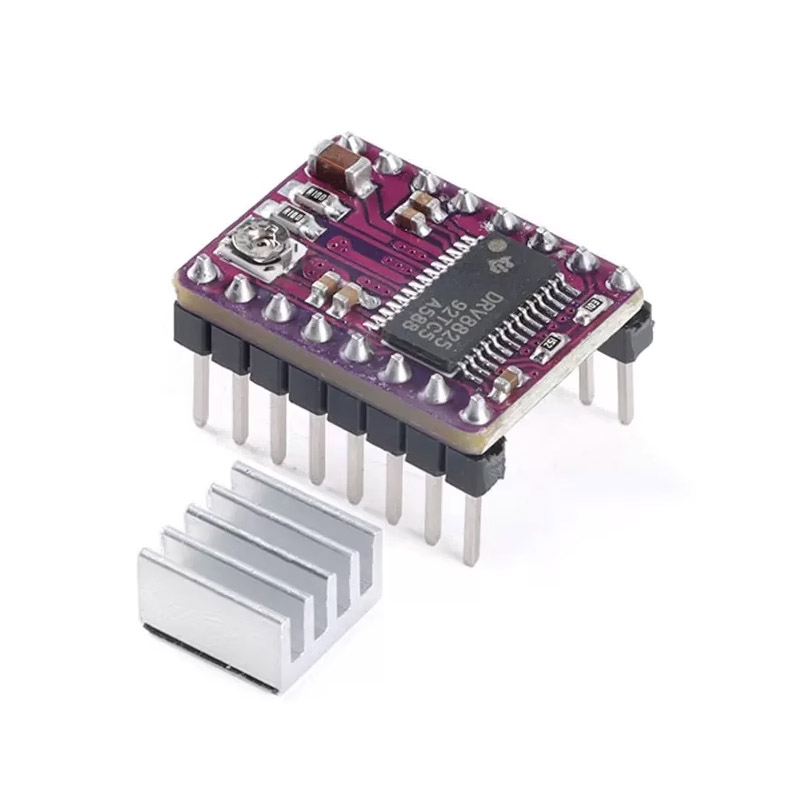

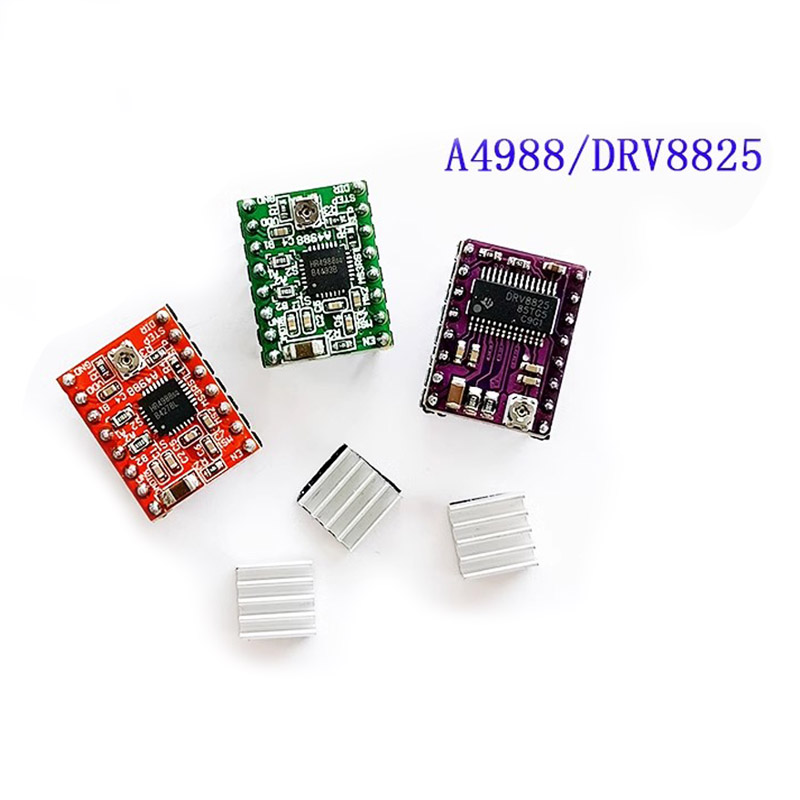

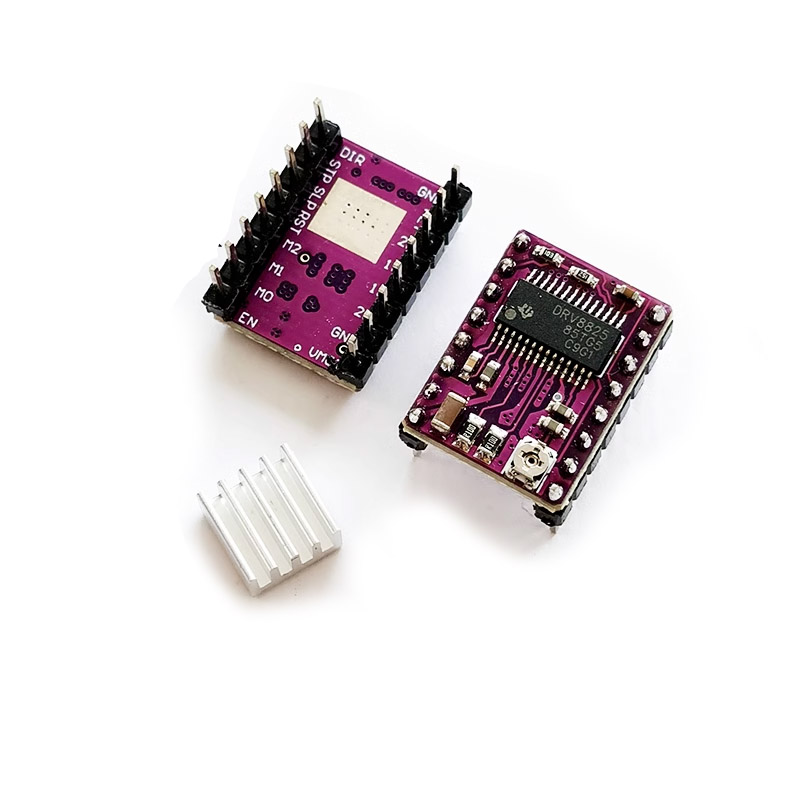

Pictures of Stepper Motor Driver Module
FAQ
Q: What's your main products?
A: Linear chrome shaft, linear round guide , linear bearing , Aluminun block, ball screw, linear square guide, miniature linear
guideway.
Q: When can I get the quotation?
A: Please send a request or leave a message on Trademanager. We will reply you within 24 hours.
Q: Is small order available?
A: Yes, it it.
Q: Have items 100% finished in stock?
A: Most items are in stock for sale
Q: May I visit your factory?
A: Sure, welcome to visit us. We are in Suzhou, Jiangsu, China.
