VRT type Linear Cross Roller Table VRT2035

Share to:

VRT type Linear Cross Roller Table VRT2035

Model:
VRT

Availability:

Quantity:



Inquire Add to Basket

Product Description

Essential details:

Product type: Cross Roller Table.

Product material: Bearing steel, plated black,

Quality; high-precision, high-rigidity, limited linear guide unit with built-in cross roller guide.

Feature: Easily installed with bolts, this product provides a high accuracy linear guiding mechanism.

Application: Linear Rail on CNC machine.

Block Series:

VRT1025/ VRT1035/ VRT1045/ VRT1055/ VRT1065/ VRT1075/ VRT1085.

VRT2035/ VRT2050/ VRT2065/ VRT2080/ VRT2095/ VRT2110/ VRT2125.
VRT3055/ VRT3080/ VRT3105/ VRT3130 VRT3155/ VRT3180/ VRT3205 .

VRT1025A/ VRT1035A/ VRT1045A/ VRT1055A/ VRT1065A/ VRT1075A/ VRT1085A.
VRT2035A/ VRT2050A/ VRT2065A/ VRT2080A/ VRT2095A/ VRT2110A/ VRT2125A.

VRT3055A/ VRT3080A/ VRT3105A/ VRT3130A/ VRT3155A/ VRT3180A/VRT3205A.

Application

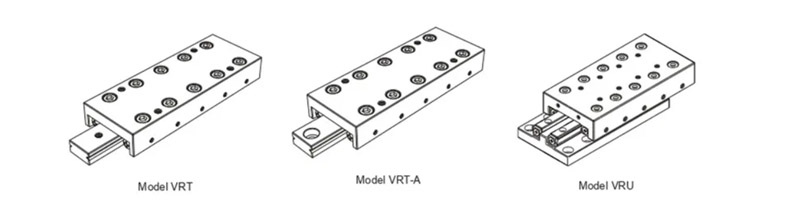

The Cross-Roller Table is a compact, highly rigid finite linear guide unit that has the Cross-RollerGuide(s) between the precision-machined table and base.There are two types of the Cross-Roller Table: model VRU, and a miniature type model VRT. TheCross-Roller Table is used in extensive applications such as OA equipment and peripherals, measuring instruments and printed circuit board drilling machines

Feature

[Easy Installation]

Since the Cross-Roller Guide(s) is installed between the precision-machined table and base.a highly accurate linear guide mechanism isachieved simply by mounting the product withbolts.

[Large Permissible Load]

Since rollers with large rated loads are installed inshort pitches, the cross-roller guide is capable ofbearing a heavy load, achieving a highly rigid lin-ear guide mechanism and gaining a long servicelife.

[Diversified Usage]

Since the rollers are orthogonally arranged oneafter another, the guide system is capable ofevenly receiving loads in the four directions applied on the table.(See Fig.2.)

[Highly Corrosion Resistant]The base and the table of models VRT-M andVRT-AM use stainless steel. Their rails,roll-ers, roller cages and screws are also made ofstainless steel. As a result, these guide systemshave significantly high corrosion resistance.The base and the table of model VRU-M aremade of aluminum.

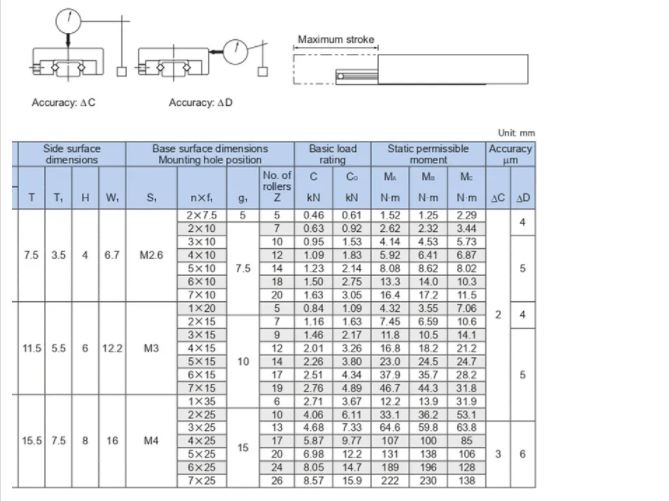

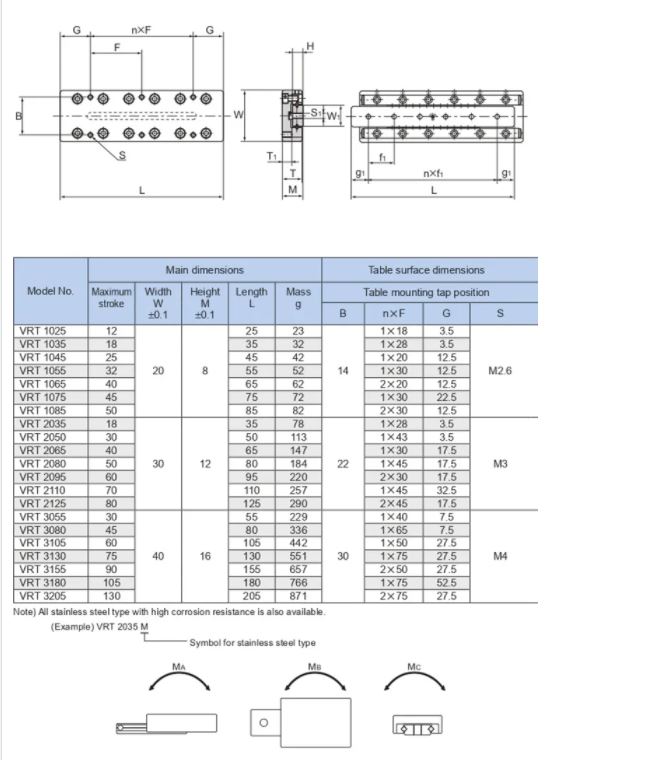

VRT parameter1 VRT parameter2
