RGW Linear Roller Guide RGW15CC for Automation Equipment

Share to:

RGW Linear Roller Guide RGW15CC for Automation Equipment

Model:
RGWCC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description of RGW Linear Roller Guide

RG linear roller guide is a high-performance linear motion control component that provides smooth and accurate linear motion through the rolling of the roller on the guide. Made from high-quality materials and advanced manufacturing processes, it is suitable for a wide range of industrial applications.

Features of RGW Linear Roller Guide

High accuracy: The RG linear roller guide has excellent accuracy and repeated positioning accuracy to meet the requirements for precise position control.

High rigidity: The design of the guide and roller makes the RG linear roller guide very rigid, able to withstand large loads and anti-deflection properties.

Low friction: The optimized contact Angle and anti-friction lubrication design between the roller and the guide rail allow for low friction and smooth movement.

High-speed motion: RG linear roller guides are suitable for high-speed motion and provide stable motion performance in applications with fast motion and frequent directional changes.

Durability: With wear-resistant materials and optimized design, RG linear roller guides offer long life and stable performance.

Main Applications of RGW Linear Roller Guide

RG linear roller guides are widely used in automation equipment, machine tools, semiconductor manufacturing, packaging equipment, laser processing machines, medical equipment, measuring instruments and other fields. They provide precise position control, smooth motion and reliable performance in these applications.

Models and Specifications of RGW Linear Roller Guide

RG linear roller guides are available in a variety of models and specifications to suit different application requirements. Specific models and specifications include guide length, number of rollers, load capacity, etc. Suitable models and specifications can be selected according to the requirements of specific applications

Model as below:

RGH-CA/RGH-HA	RGH15CA	RGW-CC/RGW-HC	RGW15CC	RGR-T	RGR15T
	RGH20CA		RGW20CC		RGR20T
	RGH20HA		RGW20HC		RGR25T
	RGH25CA		RGW25CC		RGR30T
	RGH25HA		RGW25HC		RGR35T
	RGH30CA		RGW30CC		RGR45T
	RGH30HA		RGW30HC		RGR55T
	RGH35CA		RGW35CC		RGR65T
	RGH35HA		RGW35HC
	RGH45CA		RGW45CC
	RGH45HA		RGW45HC
	RGH55CA		RGW55CC
	RGH55HA		RGW55HC
	RGH65CA		RGW65CC
	RGH65HA		RGW65HC

Product Advantage of RGW Linear Roller Guide

(1) Optimum design

Through the utilization of FEM analysis, an optimal structure for both the block and the rail of the R series linear guideway was determined. This unique design of the circulation path enables the R series to provide smoother linear motion.

(2) Exceptional rigidity

The R series linear guideway is characterized by its utilization of rollers as the rolling elements. Rollers possess a larger contact area compared to balls, resulting in higher load capacity and enhanced rigidity for the roller guideway. The diagram illustrates the rigidity comparison between a roller and a ball with equal volume.

(3) Superior load capacity

By employing four rows of rollers arranged at a 45-degree contact angle, the R series linear guideway achieves equal load ratings in the radial, reverse radial, and lateral directions. Consequently, the R series exhibits a higher load capacity in a more compact size than conventional ball-type linear guideways.

(4) Extended operating life

In contrast to ball elements, the contact pressure of rolling elements in the R series is distributed along a linear region. As a result, the concentration of stress is significantly reduced, leading to a longer operational lifespan. The nominal life of the R series can be calculated using the provided equation.

Parameters of RGW Linear Roller Guide

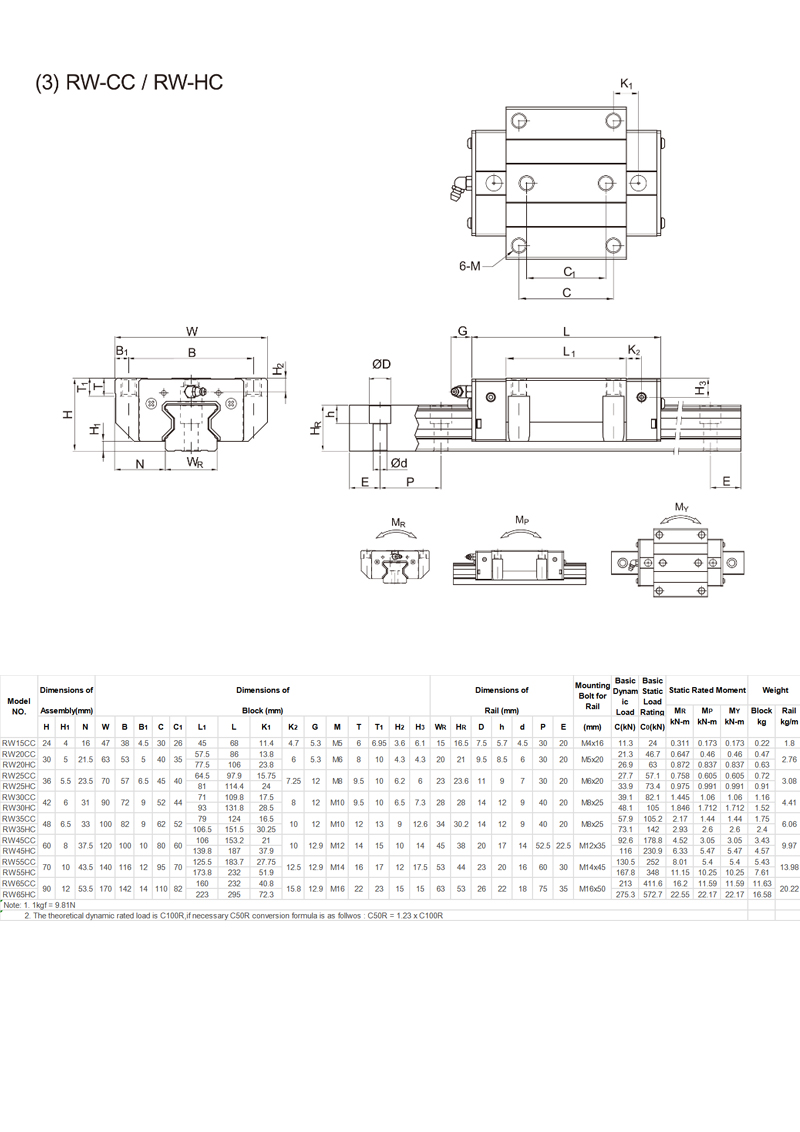

RGW Linear Roller Guide
