BKBF
| Quantity: | |
|---|---|
Product Details of Ball Screw Support Unit
| item | BKBF Ball Screw Support Unit |
| Condition | New |
| Warranty | Non |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food Shop, Printing Shops, Construction works , Energy & Mining, Advertising Company |
| Weight (KG) | 0.34 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Month |
| Core Components | Bearing |
| Manufacturing Process | Rolled Thread |
| Material | Bearing Steel GCr15 |
| Length | 0-6000mm(Custmized ) |
| Place of Origin | SuZhou |
| Brand Name | China factory |
| Product name | Ball Screw Support Unit |
Applications of Ball Screw Support Unit
Selection of shaft end mode and bearing combination mode according to the use of ball screw: suitable for heavy cutting machine tools, general precision medium and small force machinery, high precision medium and small force machinery, automatic application, axial force is very small machinery.
Features of Ball Screw Support Unit
Ball screw support unit, equipped with ultra-small angular contact ball bearings with 45° contact Angle developed for ultra-small ball screw, can obtain high rigidity, high precision and stable rotary performance.
Ball Screw Support Unit on the support side uses deep groove ball bearings. Ball Screw Support Unit such as EK, BK type internal bearings loaded with a proper amount of lithium soap grease, sealed with special sealing gaskets, can be installed directly, long-term use.
(1) the best use of bearings
Considering the balance of rigidity with the ball screw, angular contact ball bearings with high rigidity and low torque are used (contact Angle 30°, free combination). At the same time, the ultra-small support units EK6 and 8 are equipped with ultra-small angular contact ball bearings developed for the ultra-small ball screw. This kind of bearing contact Angle is 45°, small ball diameter, ball number, is a high rigidity, high precision ultra-small angular contact ball bearing, can obtain stable rotary performance.
(2) The shape of the supporting unit
Ball Screw Support Unit has angular type and round type series, can be selected according to the purpose.
(3) small and easy to install
Ball Screw Support Unit is a small volume design that takes into account the space around the installation. At the same time, the bearing loaded with adjusted prepressure can be directly assembled after delivery, which not only reduces the assembly time, but also improves the assembly accuracy.

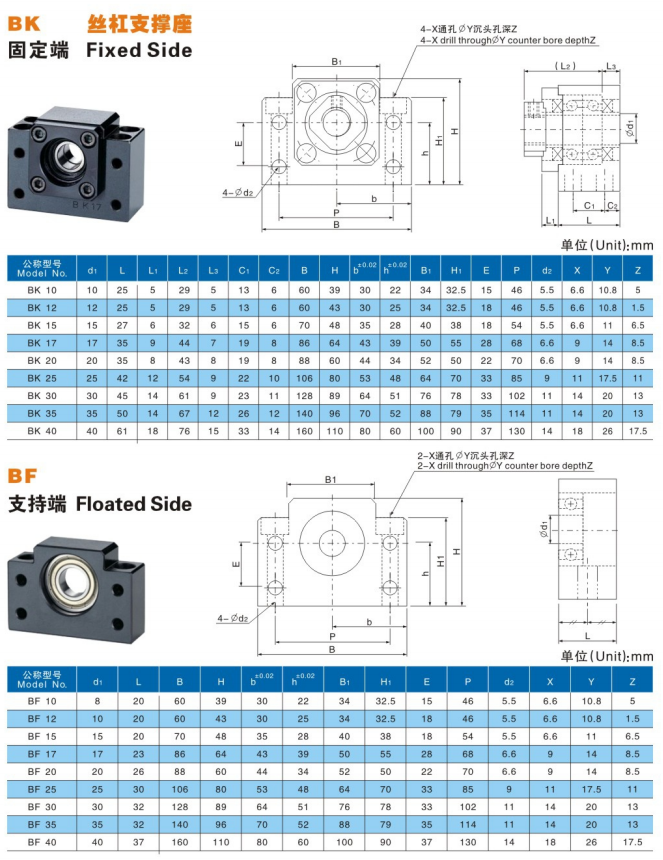

Parameters of Ball Screw Support Unit
