Left And Right Hand Thread Bearing Rod End

Share to:

Left And Right Hand Thread Bearing Rod End

Model:
Sq10RS M10*1.25mm

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

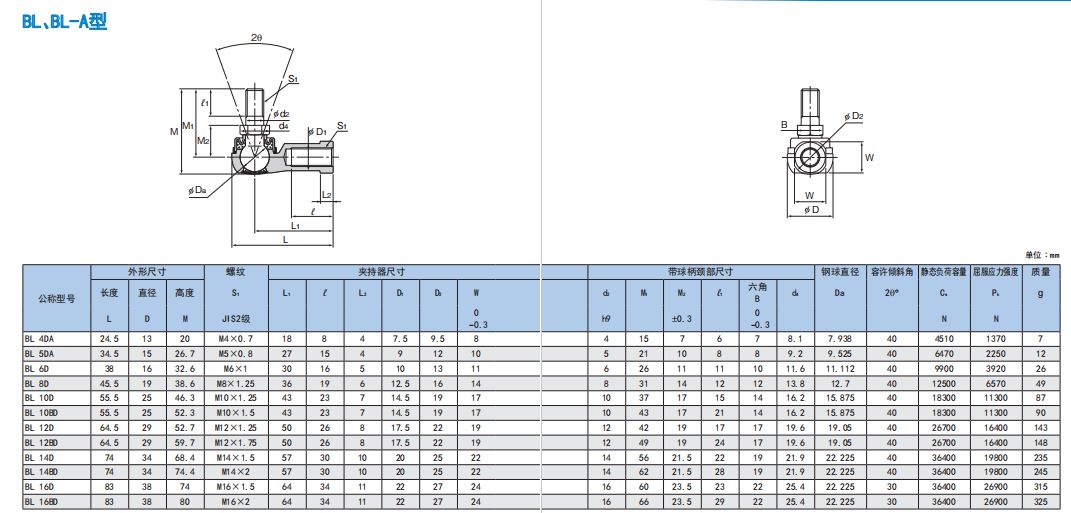

Rod End Bearing Details:

A joint bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

Articulated bearings are generally used for low-speed swing movements (ie angular movements). Since the sliding surface is spherical, tilting movements (ie self-aligning movements) can also be performed within a certain angle range, and the support shaft and the shaft shell hole are not concentric When the degree is large, it can still work normally.

Rod End Bearing mainly bear radial load, but also can withstand a certain amount of axial load which has little friction, high limiting speed, many type of size and forms. It's suitable for precision instruments, low noise motors, automobiles, motorcycles and general machinery, the machinery industry, the most common kind of bearing.

The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

Material:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.

SI..TK	SA..TK	SI..ES	SA..ES	PHS	POS	PHSB	POSB
SI5T/K	SA5T/K	SI5E	SA5E	PHS5	POS5	PHSB3	POSB3
SI6T/K	SA6T/K	SI6E	SA6E	PHS6	POS6	PHSB4	POSB4
SI8T/K	SA8T/K	SI8E	SA8E	PHS8	POS8	PHSB5	POSB5
SI10T/K	SA10T/K	SI10E	SA10E	PHS10	POS10	PHSB6	POSB6
SI12T/K	SA12T/K	SI12E	SA12E	PHS12	POS12	PHSB7	POSB7
SI14T/K	SA14T/K	SI15ES	SA15ES	PHS14	POS14	PHSB8	POSB8
SI16T/K	SA16T/K	SI17ES	SA17ES	PHS16	POS16	PHSB10	POSB10
SI18T/K	SA18T/K	SI20ES	SA20ES	PHS18	POS18	PHSB12	POSB12
SI20T/K	SA20T/K	SI25ES	SA25ES	PHS20	POS20	PHSB16	POSB16
SI22T/K	SA22T/K	SI30ES	SA30ES	PHS22	POS22
SI25T/K	SA25T/K	SI35ES	SA35ES	PHS25	POS25
SI28T/K	SA28T/K	SI40ES	SA40ES	PHS28	POS28
SI30T/K	SA30T/K	SI45ES	SA45ES	PHS30	POS30
SI35T/K	SA35T/K	SI50ES	SA50ES
SI40T/K	SA40T/K	SI60ES	SA60ES
SI50T/K	SA50T/K	SI70ES	SA70ES
		SI80ES	SA80ES

NHS	NOS	SQ..RS	SQZ..RS	GE..ES	GEG..ES	GE..UK(2RS)	PB
NHS3	NOS3	SQ5RS	SQZ5RS	GE4E	GEG4E	GE4UK	PB5
NHS4	NOS4	SQ6RS	SQZ6RS	GE5E	GEG5E	GE5UK	PB6
NHS5	NOS5	SQ8RS	SQZ8RS	GE6E	GEG6E	GE6UK	PB8
NHS6	NOS6	SQ10RS	SQZ10RS	GE8E	GEG8E	GE8UK	PB10
NHS8	NOS8	SQ12RS	SQZ12RS	GE10ES	GEG10ES	GE10UK	PB12
NHS10	NOS10	SQ14RS	SQZ14RS	GE12ES	GEG12ES	GE12UK	PB14
NHS12	NOS12	SQ16RS	SQZ16RS	GE15ES	GEG15ES	GE15UK(2RS)	PB16
NHS14	NOS14	SQ18RS	SQZ18RS	GE17ES	GEG17ES	GE17UK(2RS)	PB18
NHS16	NOS16	SQ20RS	SQZ20RS	GE20ES	GEG20ES	GE20UK(2RS)	PB20
NHS18	NOS18	SQ22RS	SQZ22RS	GE25ES	GEG25ES	GE25UK(2RS)	PB22
NHS20	NOS20			GE30ES	GEG30ES	GE30UK(2RS)	PB25
				GE35ES	GEG35ES	GE35UK-2RS	PB28
				GE40ES	GEG40ES	GE40UK-2RS	PB30
				GE45ES	GEG45ES	GE45UK-2RS
				GE50ES	GEG50ES	GE50UK-2RS
				GE60ES	GEG60ES	GE60UK-2RS
				GE70ES	GEG70ES	GE70UK-2RS
				GE80ES	GEG80ES	GE80UK-2RS
				GE90ES	GEG90ES	GE90UK-2RS
				GE100ES	GEG100ES	GE100UK-2RS
