High Quality Spherical Plain Bearing for Agricultural Machinery

Share to:

High Quality Spherical Plain Bearing for Agricultural Machinery

Model:
Ge20es-2RS

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info

Product Name: Spherical Plain Bearing Ge.

Type: Rod End.

Body Material: Steel/Chrome Steel/PTFE Fabric Material.

Model Number: Ge..Es / Ge..Es-2RS.

Specification: ID15mm to ID250mm.

Add Lubricant: Self-lubricating.

Precision Rating: P0.

Outer Structure: Whole Outer Ring.

Load Direction: Radial Spherical Plain Bearing.

Application: Automobile Shock Absorber, Water Conservancy Machinery.

Product Description

Spherical Bearings are consist of an inner ring with a sphere convex outside surface and a outer ring with concave inside surface. They are also called Spherical Plane Bearing, Spherical ball bushing bearings and Ball Bushings. Spherical Plain Bearings are used to accommodate shafts or rods with varying amounts of misalignment and provide consistent performance under conditions of marginal lubrication, extreme speed and critical-application stress.

Product Parameters

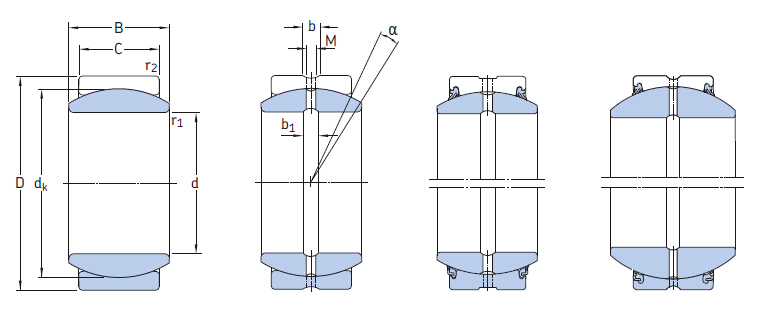

No.	Model	Dimensions(mm)								Load Ratings		Weight (Kg)
		d	D	B	C	dk	r1 min	r2 min	α	Dynamic	Static
		d	D	B	C	dk	r1 min	r2 min	α	(KN)	(KN)
1	GE15ES 2RS	15	26	12	9	22	0.3	0.3	8	16	84	0.027
2	GE17ES 2RS	17	30	14	10	25	0.3	0.3	10	21	106	0.041
3	GE20ES 2RS	20	35	16	12	29	0.3	0.3	9	30	146	0.066
4	GE25ES 2RS	25	42	20	16	35.5	0.6	0.6	7	48	240	0.119
5	GE30ES 2RS	30	47	22	18	40.7	0.6	0.6	6	62	310	0.153
6	GE35ES 2RS	35	55	25	20	47	0.6	1	6	79	399	0.233
7	GE40ES 2RS	40	62	28	22	53	0.6	1	7	99	495	0.306
8	GE45ES 2RS	45	68	32	25	60	0.6	1	7	127	637	0.427
9	GE50ES 2RS	50	75	35	28	66	0.6	1	6	156	780	0.546
10	GE60ES 2RS	60	90	44	36	80	1	1	6	245	1220	1.04
11	GE70ES 2RS	70	105	49	40	92	1	1	6	313	1560	1.55
12	GE80ES 2RS	80	120	55	45	105	1	1	6	400	2000	2.31
13	GE90ES 2RS	90	130	60	50	115	1	1	5	488	2440	2.75
14	GE100ES 2RS	100	150	70	55	130	1	1	7	607	3030	4.45
15	GE110ES 2RS	110	160	70	55	140	1	1	6	654	3270	4.82
16	GE120ES 2RS	120	180	85	70	160	1	1	6	950	4750	8.05
17	GE140ES 2RS	140	210	90	70	180	1	1	7	1070	5350	11.02
18	GE160ES 2RS	160	230	105	80	200	1	1	8	1360	6800	14.01
19	GE180ES 2RS	180	260	105	80	225	1.1	1.1	6	1530	7650	18.65
20	GE200ES 2RS	200	290	130	100	250	1.1	1.1	7	2120	10600	28.03
21	GE220ES 2RS	220	320	135	100	275	1.1	1.1	8	2320	11600	35.51
22	GE240ES 2RS	240	340	140	100	300	1.1	1.1	8	2550	12700	39.91
