Heavy Duty Linear Guide Rail with Flange Blocks for Cnc

Share to:

Heavy Duty Linear Guide Rail with Flange Blocks for Cnc

Model:
HGWCC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Essential details of Linear Guide Rail

Name: Linear Guide Rail

Rail Set Material: bearing steel/stainless steel /carbon steel.

Rail Structure:Linear Guide Rail + Slide Block.

Model:HGW, HGH, HGL, HGW.

Type of block: Flange/Square

Length:100mm-6000mm, any cutting

Support:100% Interchangeable.

Block Type: Flange Linear Guide Rail Block.

Application: Linear Guide Rail for Cnc Machining Parts.

Service:Custom OEM ODM.

Quality: Long Life Cycle.

Description for Linear Guide Rail

Linear Guide Rail (Linear Guide Rail) is a mechanical transmission element that is primarily used to support and guide moving parts in linear motion. It has the characteristics of high precision, high speed and high carrying capacity, and is widely used in various industrial automation equipment and instruments.

Features for Linear Guide Rail

1. High precision: The manufacturing precision of linear guide rail is high, and accurate linear movement can be achieved.

2. High rigidity: linear guide rail have high rigidity and can withstand large loads.

3. Low friction: The linear guide rail has less friction, stable movement and reduced energy consumption.

4. Anti-wear: the ball or roller of linear guide rail has anti-wear performance, which can extend the service life.

5. Easy installation: linear guide rail has simple structure, easy installation and strong adaptability.

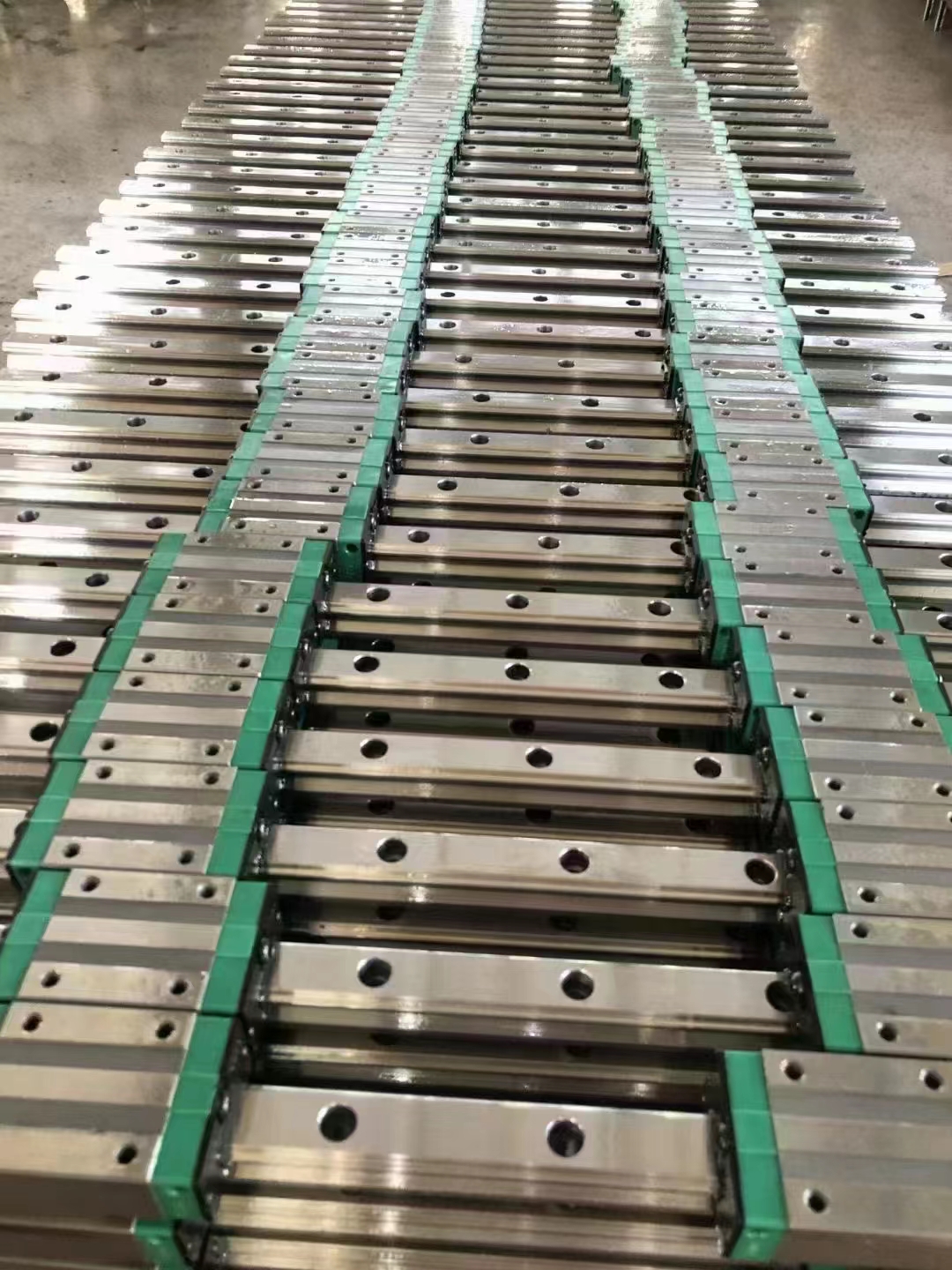

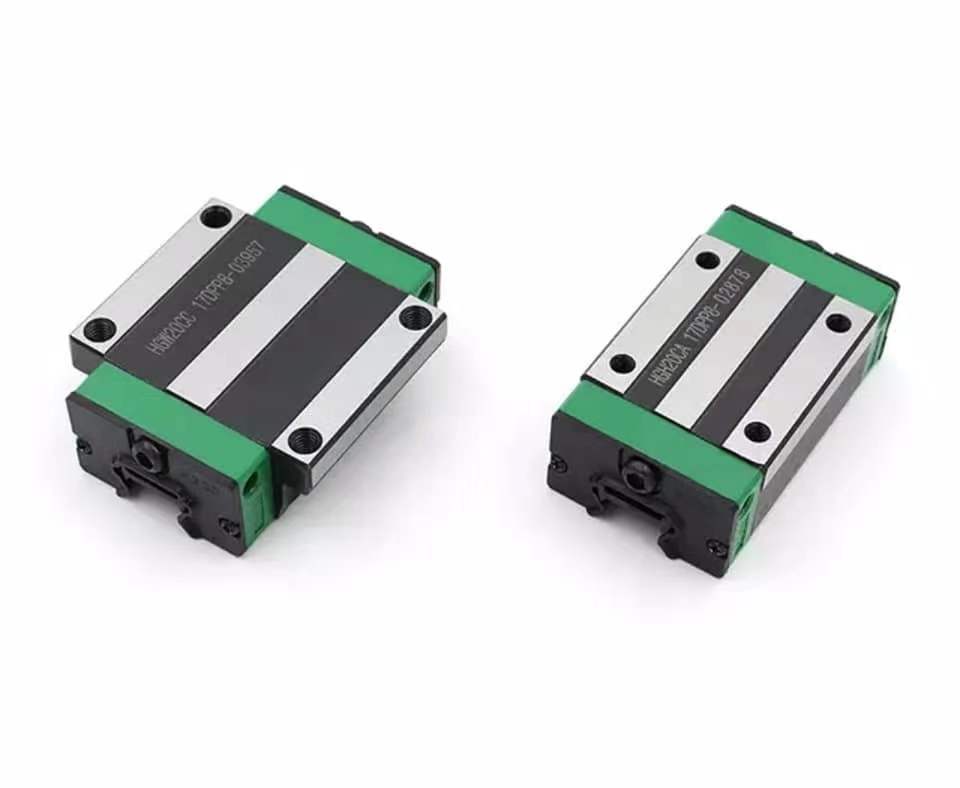

Pictures of Linear Guide Rail

Introduction of Linear Guide Rail

Linear Guide Rail is consisted of rail, block, rolling elements, retainer, recirculator, end seal etc. By using the rolling elements, such as balls or rollers between the linear guide rail and block, the linear guide rail can achieve high precision linear motion.Linear guide block is divied to flange type and square type without flange.or Seal type block, Standard type block, Double bearing type block, Short type block. Also,linear guide rail matching block is divided to high load capacity with standard block lenth and ultra high load capacity with longer block length.

Structure of Linear Guide Rail

1.Rolling cycle system: slider, Llinear guide rail, end cover, steel ball, ball holder;
2.Lubrication system: oil nozzle and tubing joint;
3.Dust-proof system: oil scraper, negative dust seal dust-proof sheet, guide rail bolt cover, metal scrap

Advantages of Linear Guide Rail
1.Easy to install ,direct locking with screw and worktable;
2.Design of the ball arrange to upgrade weight bearing capacity;
3.Long life with high speed,high accuracy and linear motion;
4.High speed, low noise;
5.High rigidity ,multiple precision

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Advertising Company, Others.

Regular specifications of Linear Guide Rail

HGHCA/HA Series	HGLCA/HA Series	HGWCC/HC Series
HGH15CA/HGH15HA	HGL15CA/HGL15HA	HGW15CC/HGW15HC
HGH20CA/HGH20HA	HGL25CA/HGL25HA	HGW20CC/HGW20HC
HGH25CA/HGH25HA	HGL30CA/HGL30HA	HGW25CC/HGW25HC
HGH30CA/HGH30HA	HGL35CA/HGL35HA	HGW30CC/HGW30HC
HGH35CA/HGH35HA	HGL45CA/HGL45HA	HGW35CC/HGW35HC
HGH45CA/HGH45HA	HGL55CA/HGL55HA	HGW45CC/HGW45HC
HGH55CA/HGH55HA		HGW55CC/HGW55HC
HGH65CA/HGH65HA		HGW65CC/HGW65HC

Parameters of Linear Guide Rail

HGW-CC/HGW-HC

HGWCC Linear guideway

FAQ

Q: Could you offer OEM service ?
A: Yes,we offer OEM service.

Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-14 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
