China Factory Custom-made Tr20×4 20mm Thread Lead Screw for 3d Printer

Share to:

China Factory Custom-made Tr20×4 20mm Thread Lead Screw for 3d Printer

Model:
TR20

Availability:

Quantity:



Inquire Add to Basket

Product Details

Introduction of Lead Screw

Trapezoidal lead screw is made of screw and T-nut. The lead screw is an essential component in linear actuators.

A leads crew (or lead screw), also known as a power screw or translation screw, is a screw used as a linkage in a machine, to translate turning motion into linear motion. Because of the large area of sliding contact between their male and female members, screw threads have larger frictional energy losses compared to other linkages. They are not typically used to carry high power, but more for intermittent use in low power actuator and positioner mechanisms.

Application of Lead Screw

Common applications are linear actuators, machine slides (such as in machine tools), vises, presses, and jacks.Lead screws are manufactured in the same way as other thread forms (they may be rolled, cut, or ground).A lead screw is sometimes used with a split nut which allows the nut to be disengaged from the threads and moved axially, independently of the screw's rotation, when needed (such as in single-point threading on a manual lathe).

Regular standard or non-standard lead screws with nuts as following

Lead Screw Material	Stainless steel	Carbon steel	Alloy steel	Aluminium
Screw Nuts Material	Stainless steel	Carbon steel	POM	Bronze/Brass/Copper
Regular Size	TR5/6/8/10/12/14/16/18/20/22/25/28/30/32/36/40/45/50
Thread Direction	Right	Left	Right and Left
Manufacturing Process	Rolled Thread	Milled Thread
Length	1000mm/Customized Length 100mm-3000mm
End machining Customized	Provided
Service	OEM Service

Features of Lead Screw

1. Metric and imperial systems are available for lead screw.

2. Lead screw has large transmission power, accurate positioning and large bearing capacity, and has the function of self-locking.

3.Lead screw is usually suitable for transmission, so there are high requirements for quality. The turning heat treatment is carried out on the production, and then the special grinding machine is used to achieve this requirement.

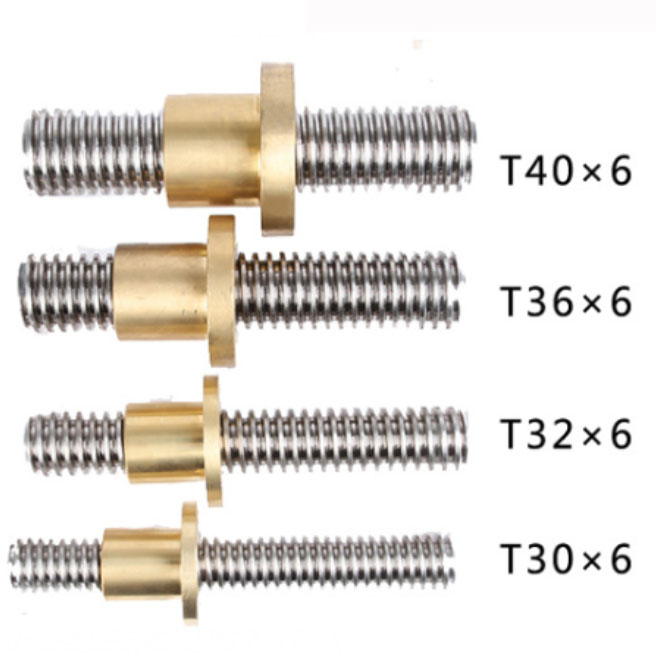

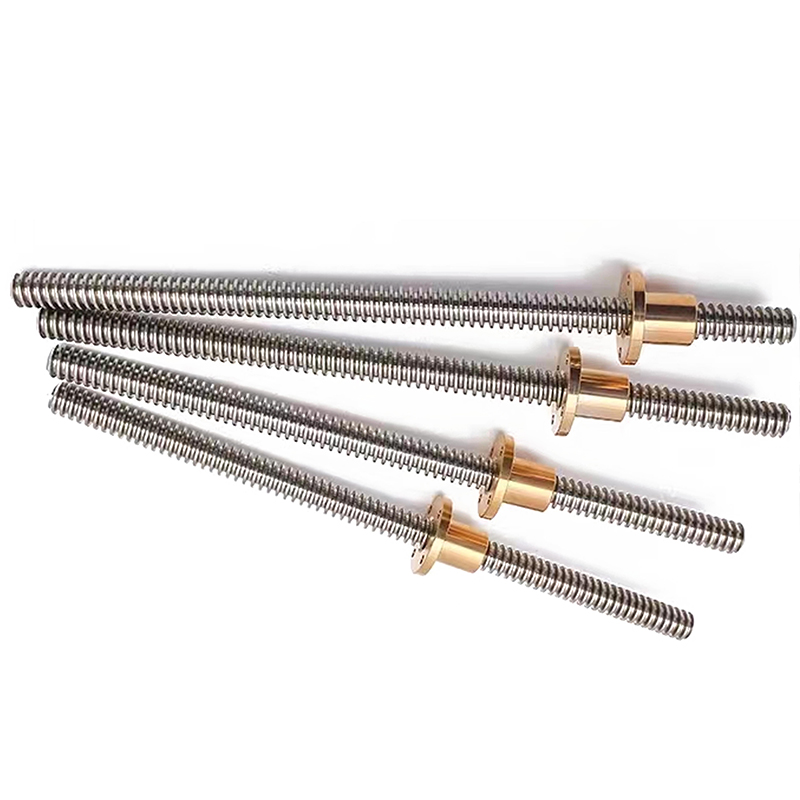

Picture of Lead Screw
