Basic Info of Chromed Piston Rod
Model NO:Chromed Piston Rod
Material Grade:Ck45, 20mnv6, 42CrMo4.
Tolerance:ISO F7.
Heat Treatment:None, Induction Hardened, Q+T.
Surface Roughness:0.63-0.16μm.
Material Hardness:HRC15, HRC30, HRC55 Can Be Choice.
Chrome Thicknes:15-50 Microns.
Package:Paper Sleeved, Shockproof Membrane, Wooden Case.
Parameters of Chromed Piston Rod
A. Flexible Hardened Chrome Rod
| Steel Grade | C45E (EN 10083) |
| Tolerance | ISO f7 |
| Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
| Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
| Hardness | HRC 15-25, HRC 20-30 (Based on different heat treatment) |
| Chrome Thickness | 20-50µm can be choice |
| Chrome Hardness | min. 900 HV (0.1) |
| Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
| Mechanical Properties | According to EN 10083-2 |
B.CK45 Induction Hardened Chrome Rod
| Steel Grade | C45E (EN 10083) |
| Tolerance | ISO f7 |
| Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
| Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
| Hardness | HRC 55+/-2 |
| Hardened Depth | 0.3-3.5mm can be choice |
| Chrome Thickness | 20-50µm can be choice |
| Chrome Hardness | min. 900 HV (0.1) |
| Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
| Mechanical Properties | According to EN 10083-2 |
Description of Chromed Piston Rod
Ck45 Chromed Piston Rod processed by more than ten processing, made by steel bar in material CK45, 20MnV6, 42CrMo4, SUS304, SUS316 etc.. Dia. Precision level of f7 tolerance, surface hardness min. HV900.
Chrome layer thickness 20-50micron can be choice, Salt spray test 60-90hours.
Induction hardened hardness HRC55±2, hardened depth 0.5-3.5mm can be choice.
Features of Chromed Piston Rod
1.45 Chromed Piston Rod: It is a kind of high quality carbon structural steel, corresponding to the Japanese standard S45C, American standard: 1045, German standard C45. It is characterized by higher strength and deformation resistance than ordinary A3 steel.
2.45 Chromed Piston Rod: GB/T699-1999 standard 45 steel recommended heat treatment system is 850℃ normalizing, 840℃ quenching, 600℃ tempering, to achieve the performance of yield strength ≥355MPa.
3.45 steel Chromed Piston Rod: 40Cr workpiece quenching should be used after oil cold, 40Cr steel hardenability is better, in the oil cooling can be hardened, and the deformation of the workpiece, cracking tendency is small. But small enterprises in the case of tight oil supply, the shape of the workpiece is not complex, can be quenched in water, no cracking was found, but the operator should strictly master the temperature of the water into the water and the water out of the experience.

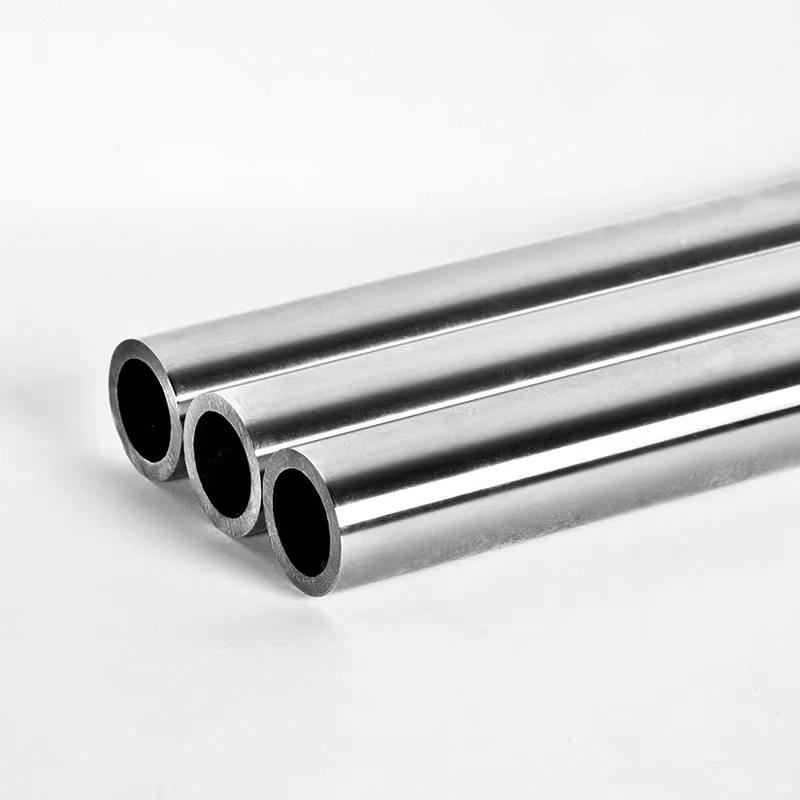

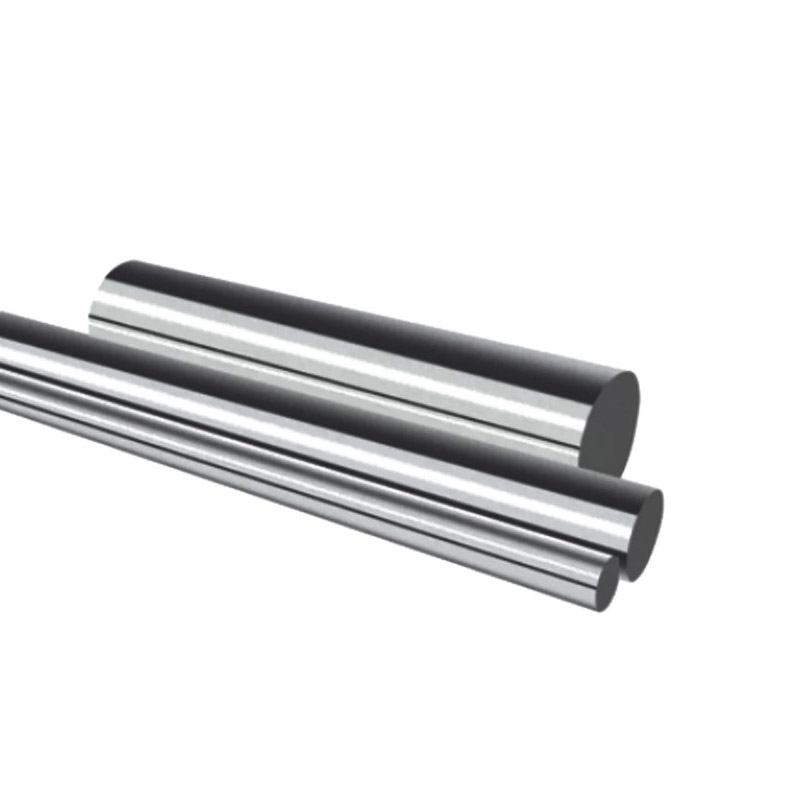

Pictures of Chromed Piston Rod
