Essential details of Flexible Coupling Shaft Coupler
Model:Flexible Couplings.
Material: Aluminum Alloy.
Structure: Jaw / Spider/plum blossom.
Surface Treatment: Oxidation.
Outer Diameter:10-65mm.
Tightening Method:Set Screw Clamping.
Standard or Nonstandard:Standard.
Usage:Servo motor/Stepping motor/Module
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing.
| The Product Name | Aluminum Alloy Flexible Coupling Shaft Coupler |
| The Material | Bushings: 7075 aluminum alloy Slider Pad: PUT 98A Screw: 12.9 Class Screw |
| Size of Coupling | Standard, Nonstandard customized available |
| Size of Inner Hole | High Precision H7 standard |
| Keyway | Available |
| Surface Treatment | Oxidation and Not Oxidized, available |
| Features | 1. High torque, Adjust deviation well 2. Vibration absorption 3. Zero rotation clearance 4. Detachable design, easy installation |
| Flexible or Rigid | Flexible |
| Standard or Nonstandard | Standard, Nonstandard customized available |
| Fixed Way | Top Wire + Clamping / Top Wire |
Application of Flexible Coupling Shaft Coupler
The plum blossom coupling is closely combined with the main body of the two half coupling with polyurethane plastic as the elastic element, and the main body is mainly made of imported alloy aluminum. It is applicable to servo system, spindle drive, lifting platform, machine tool drive and gearbox motor. Compact, no backlash, three different hardness elastomers are provided, which can absorb vibration and compensate radial and angular deviation. It is mainly suitable for working places with frequent starting, forward and reverse rotation, medium high speed, medium torque and high reliability
Description
When it is firm, zero backlash torque transmission can be realized under the condition of low button torque.
For simple disassembly and assembly type, the shaft sleeve can be installed and disassembled simply.
Excellent elastic effect, can absorb vibration, eccentricity and deflection angle.
It has electrical insulation.
There are three kinds of hardness of the elastic spacer.
The torque and error adjustment amount can be selected according to the service conditions.
Product uses: shaft slide, indexing table, machine tool, injection molding machine, handling equipment, dispensing machine
Features of Flexible Coupling Shaft Coupler
1、Elastic plum-shaped flexible coupling
2、During transmission, it can realize zero backlash torque transmission torque under low torque state
3、The elastic spacer is made of polyurethane, and the torque exceeds the traditional claw coupling by more than 2 times
4、Plum blossom elastomer can resist oil and electrical insulation, operating temperature: -20℃~80℃
5、Excellent elastic effect to absorb vibration, eccentricity and deflection
6、If there are multiple deviations, the allowable value of a single deviation will be reduced.

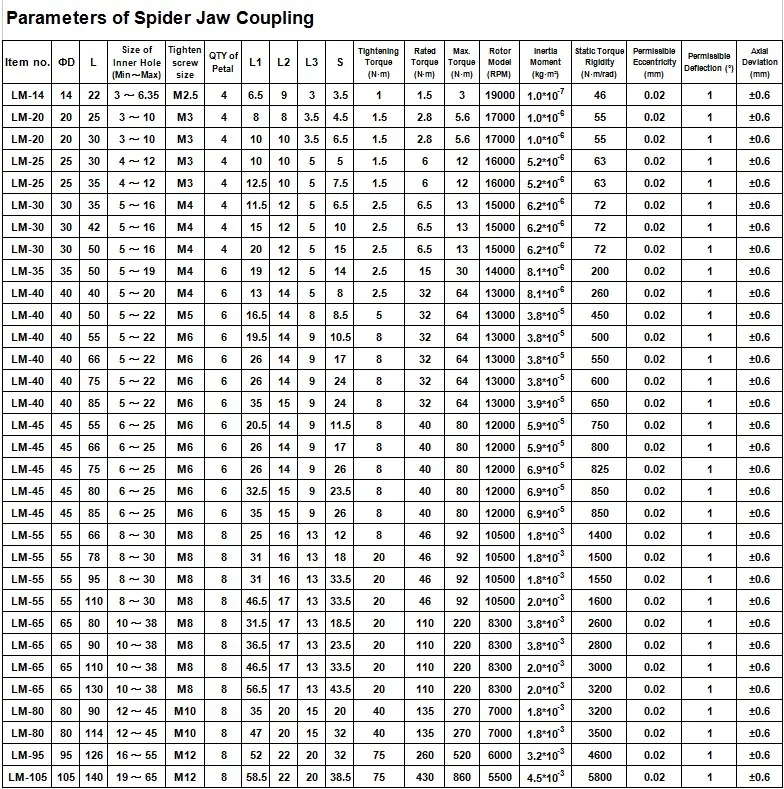

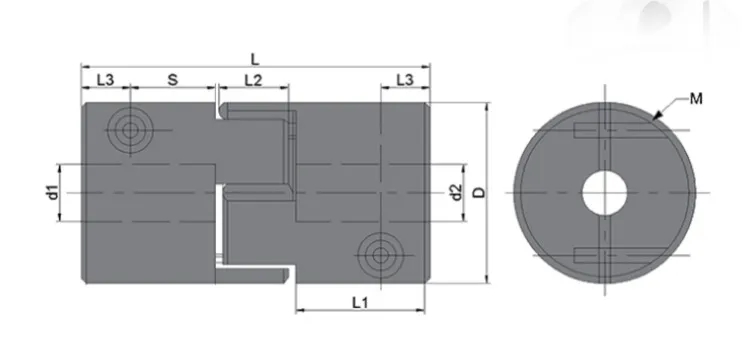

Parameters of Flexible Coupling Shaft Coupler
