Aluminium Alloy Dual-axis Internal Shaft Guide SGR15 Linear Rail

  • SGR15

Availability:
Quantity:


Essential details of SGR15 Linear Rail

Bearing:SGR15 SGB15

Core Components:SGR15 Linear Rail and Block.

Material:Gcr15,Aluminum alloy steel.

Applicable Industries:Building Material Shops, Manufacturing Plant, CNC parts...

Description of SGR15 Linear Rail

SGR15 Linear Rail with 3 wheels 4 wheels 5 wheels. Another lock can be customized, elastic adjustable. The width of the slider is the same as that of the slide track. See the size below for the length. In order to match different sliders flexibly, the slide rails and sliders are set separately to meet different matching requirements.

Pictures of SGR15 Linear Rail

Block for SGR15N linear rail,

we have SGB15N-3 wheel,SGB15N-4 wheel,SGB15N-5 wheel,

Block for SGR15N rail, we have SGB15N-3 wheel, SGB15N-4 wheel, SGB15N-5 wheel,

SGR15 Linear Rail

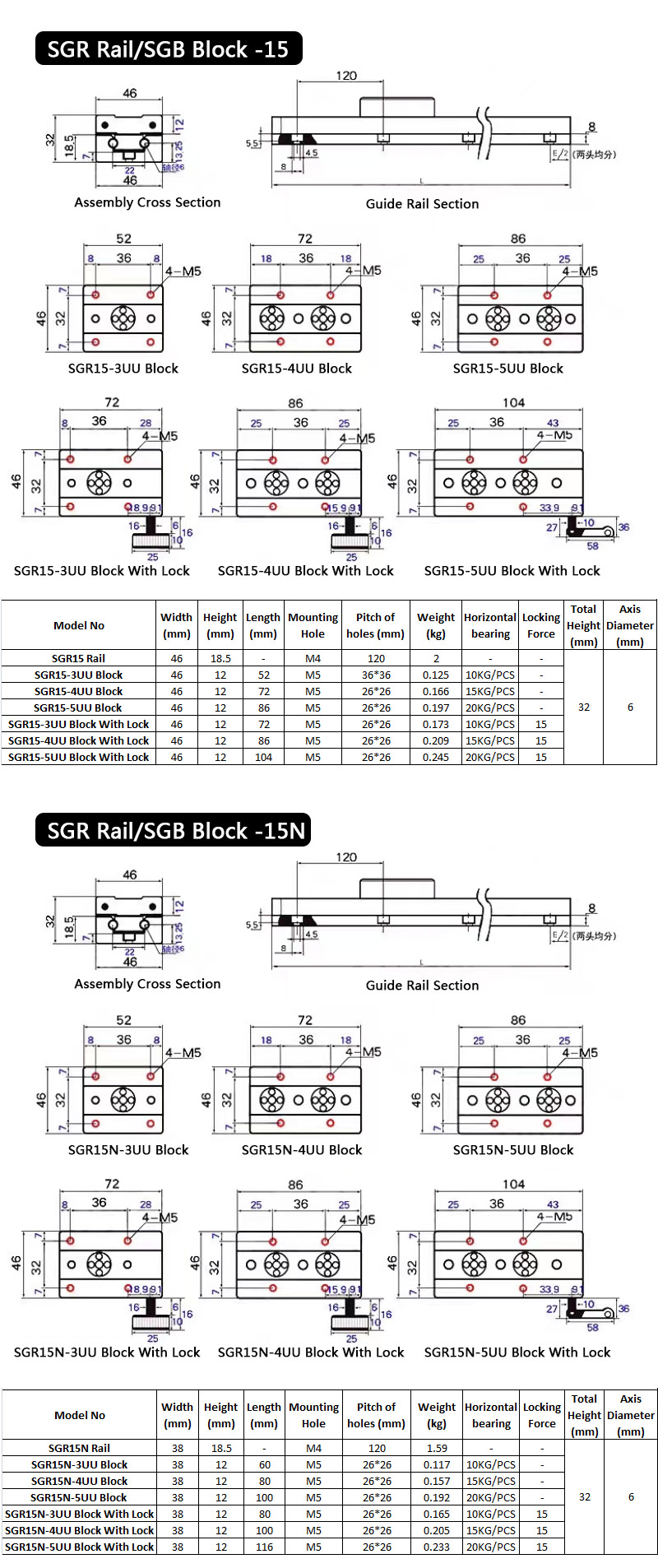

Parameters of SGR15 Linear Rail

SGR15 Linear Rail
